Steve Neville (Mk1) - Fishing Monitor

Electronics

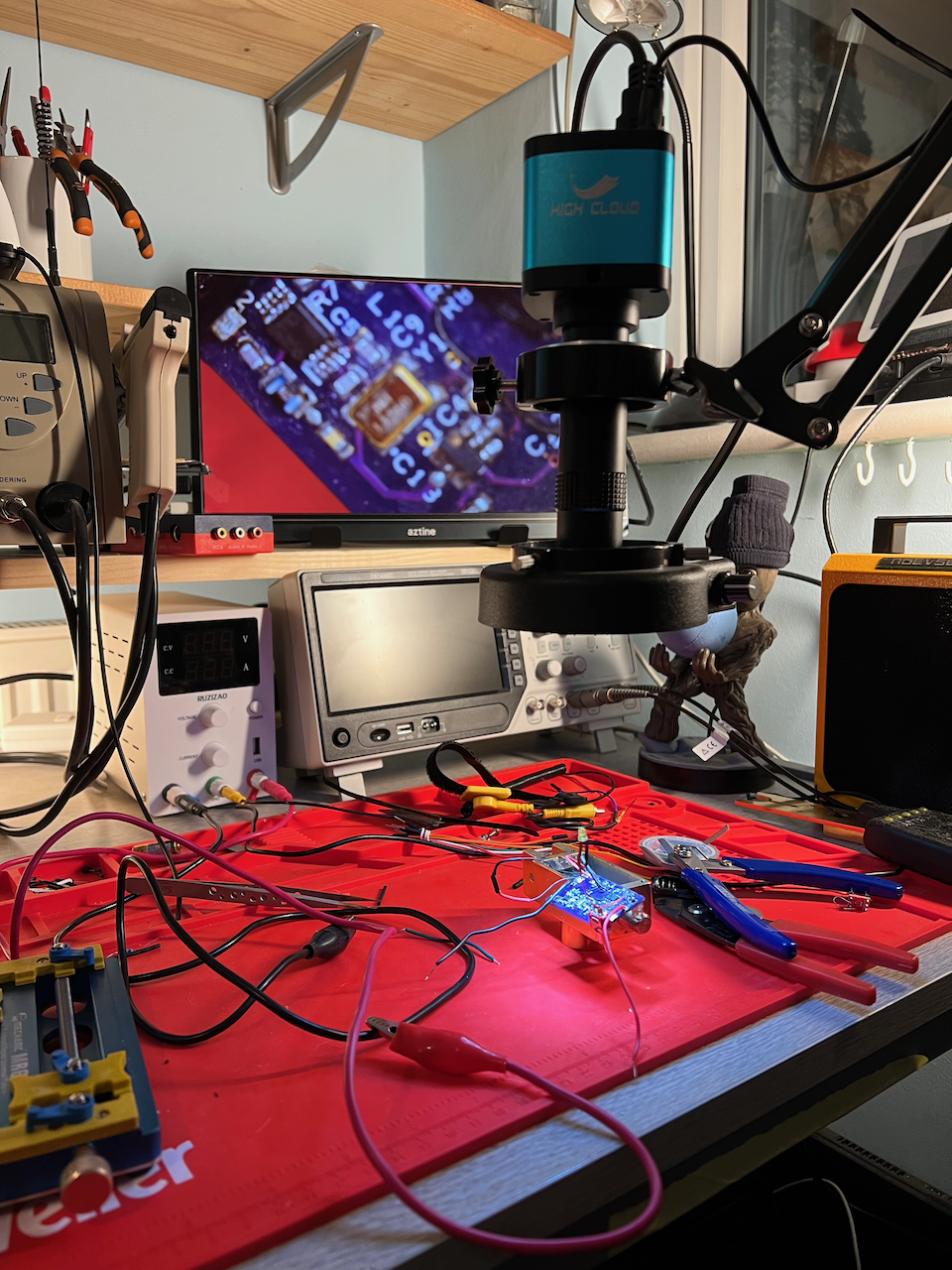

A Steve Neville Bite alarm in solid metal suffering from the following issues

  • Low speaker volume

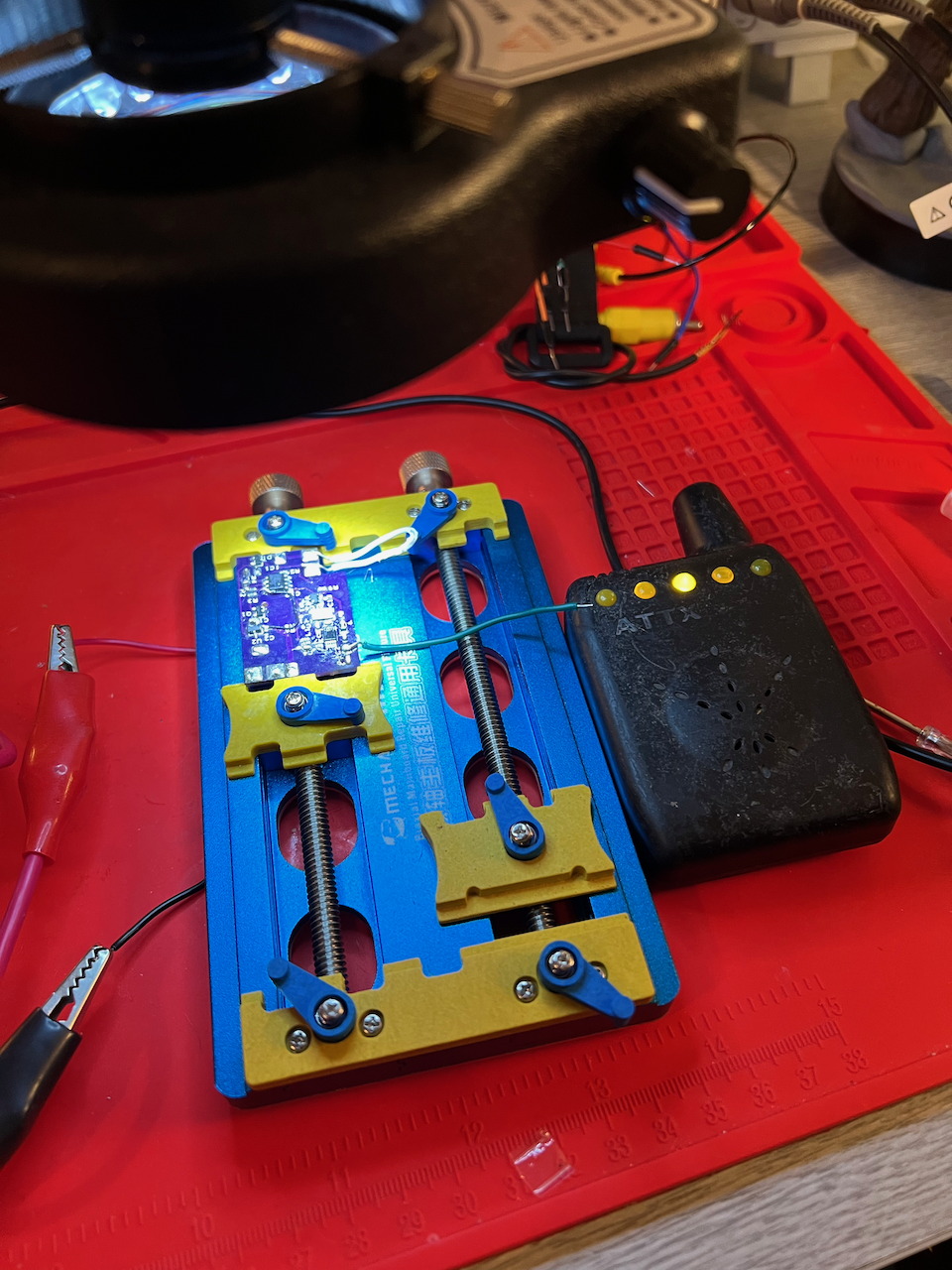

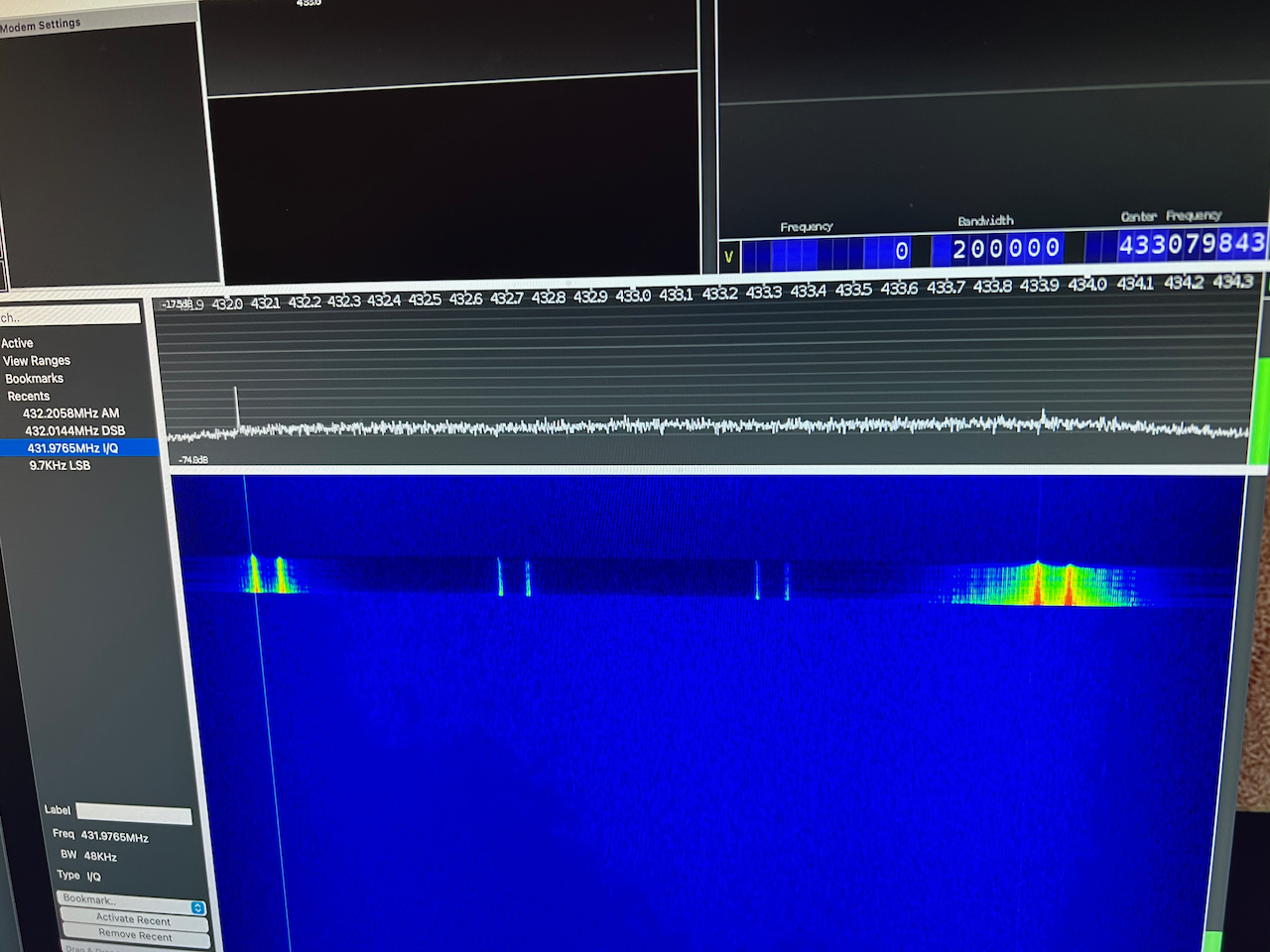

  • No transmission to the ATTx receiver

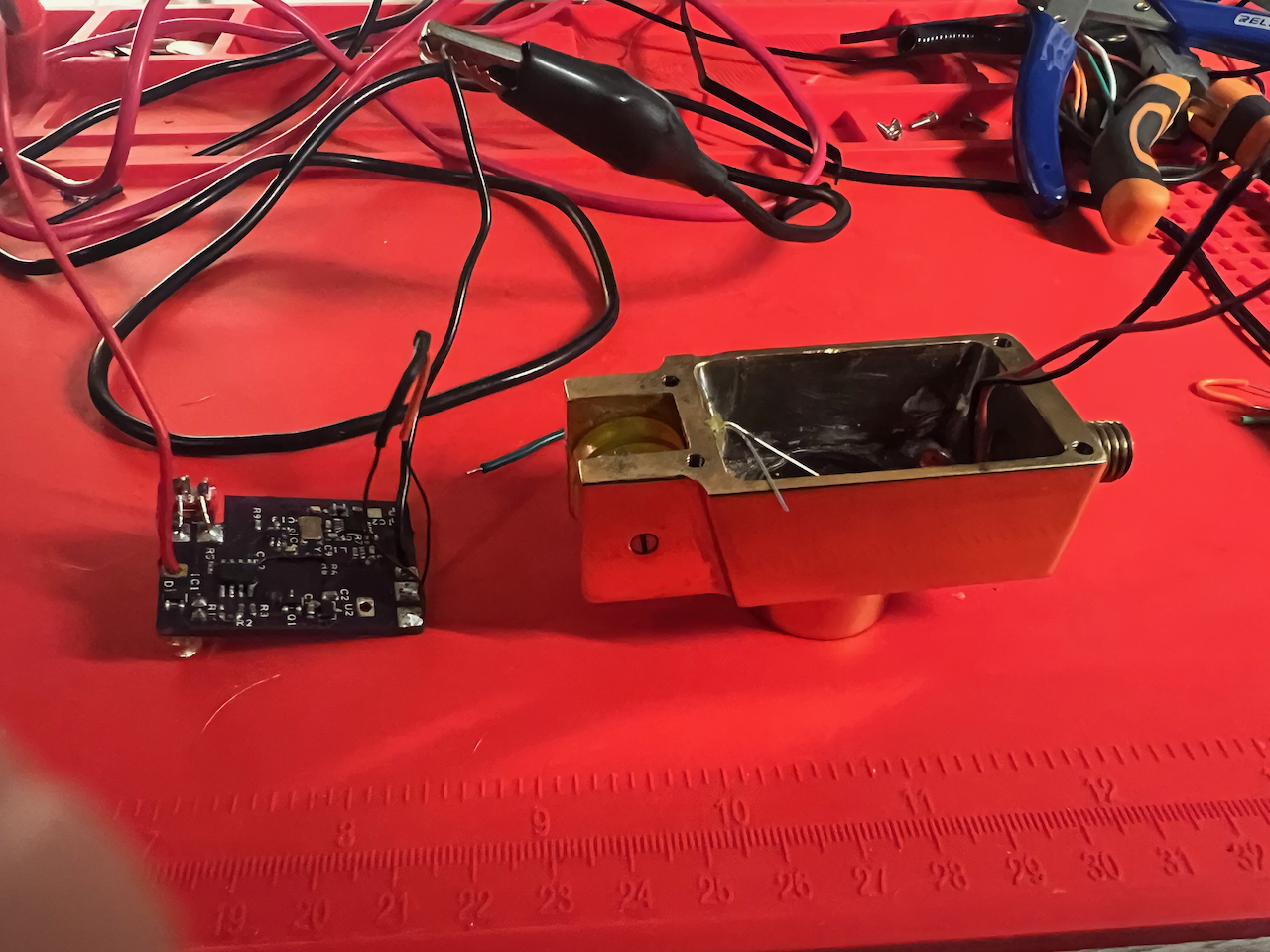

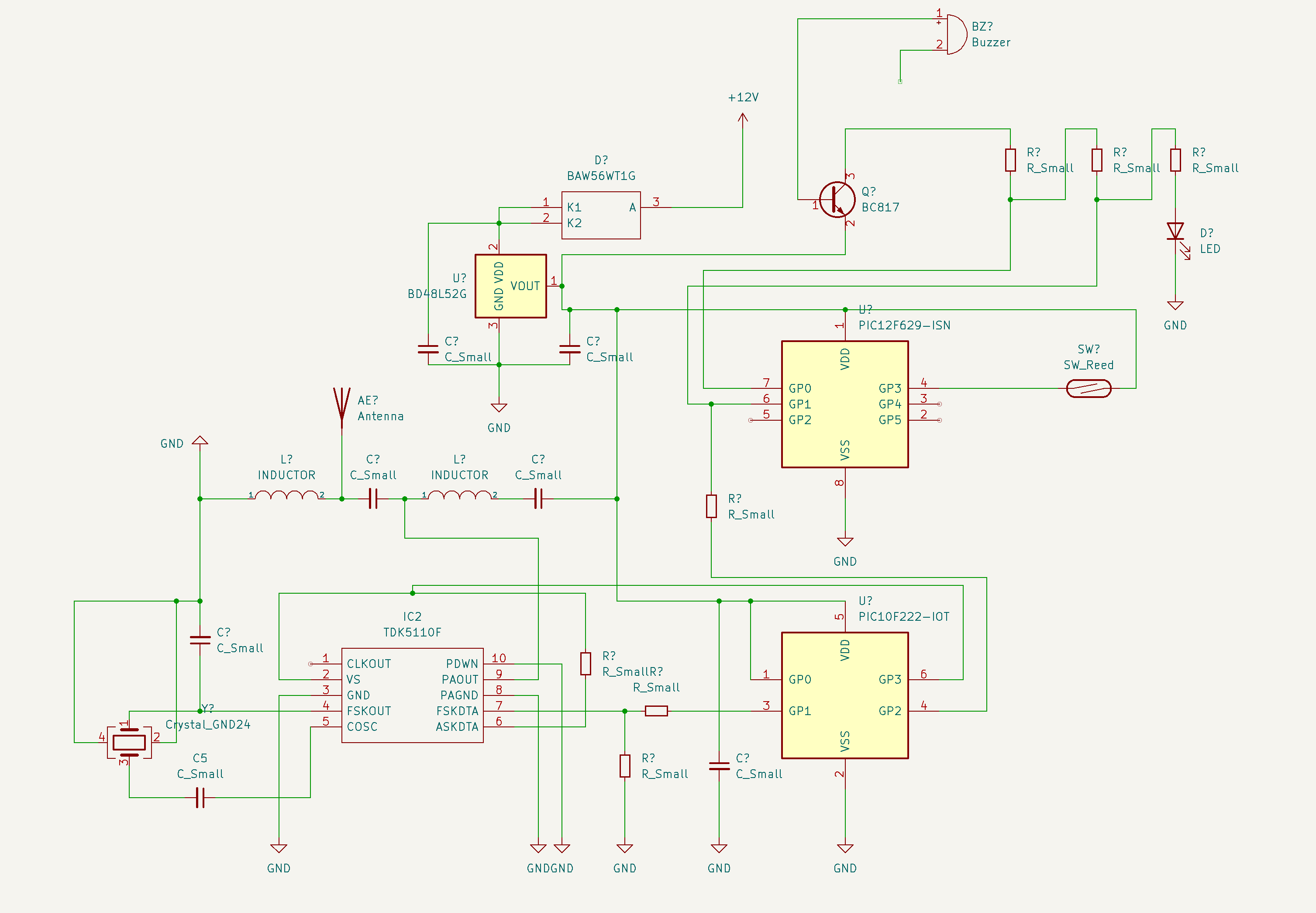

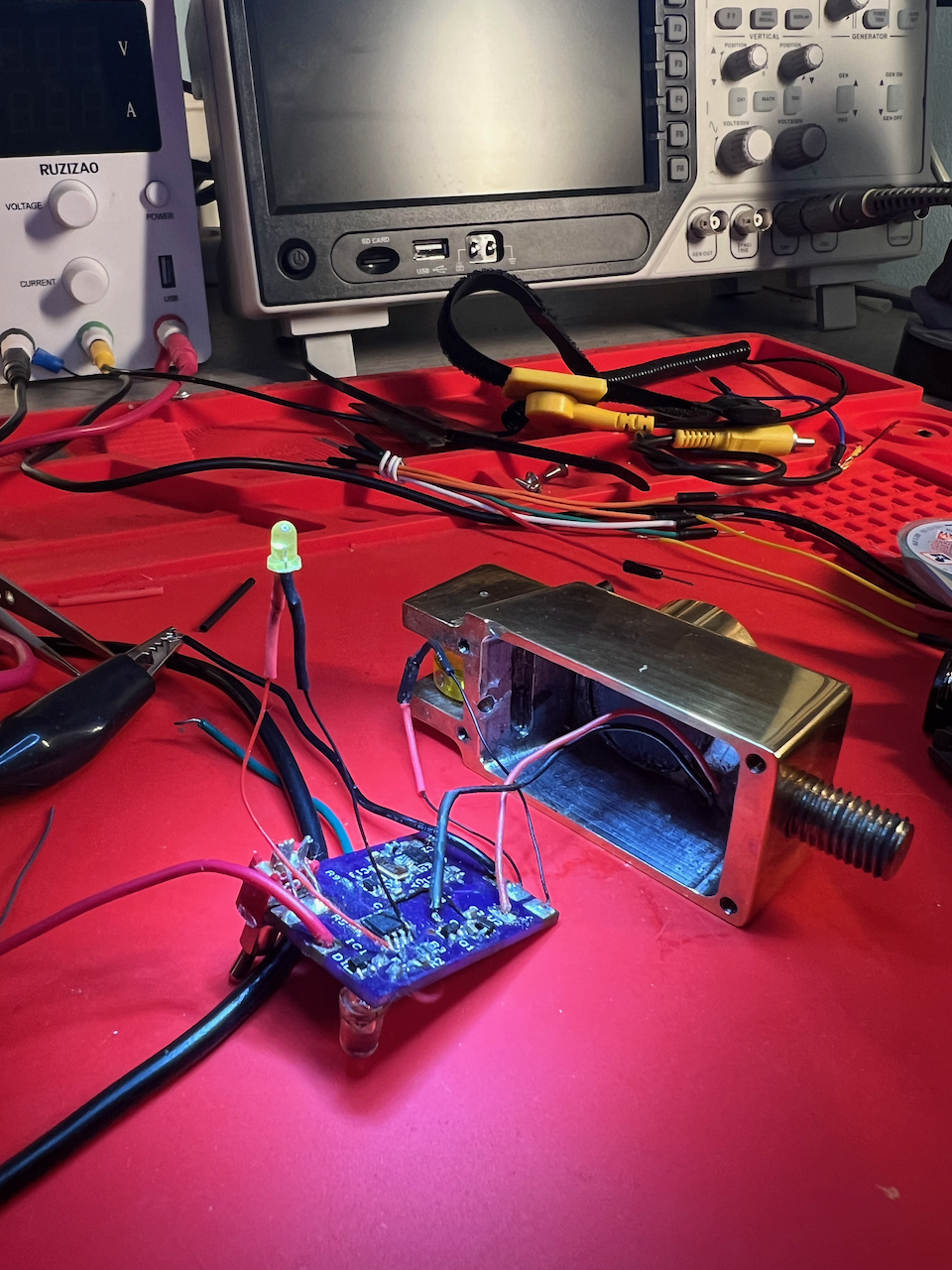

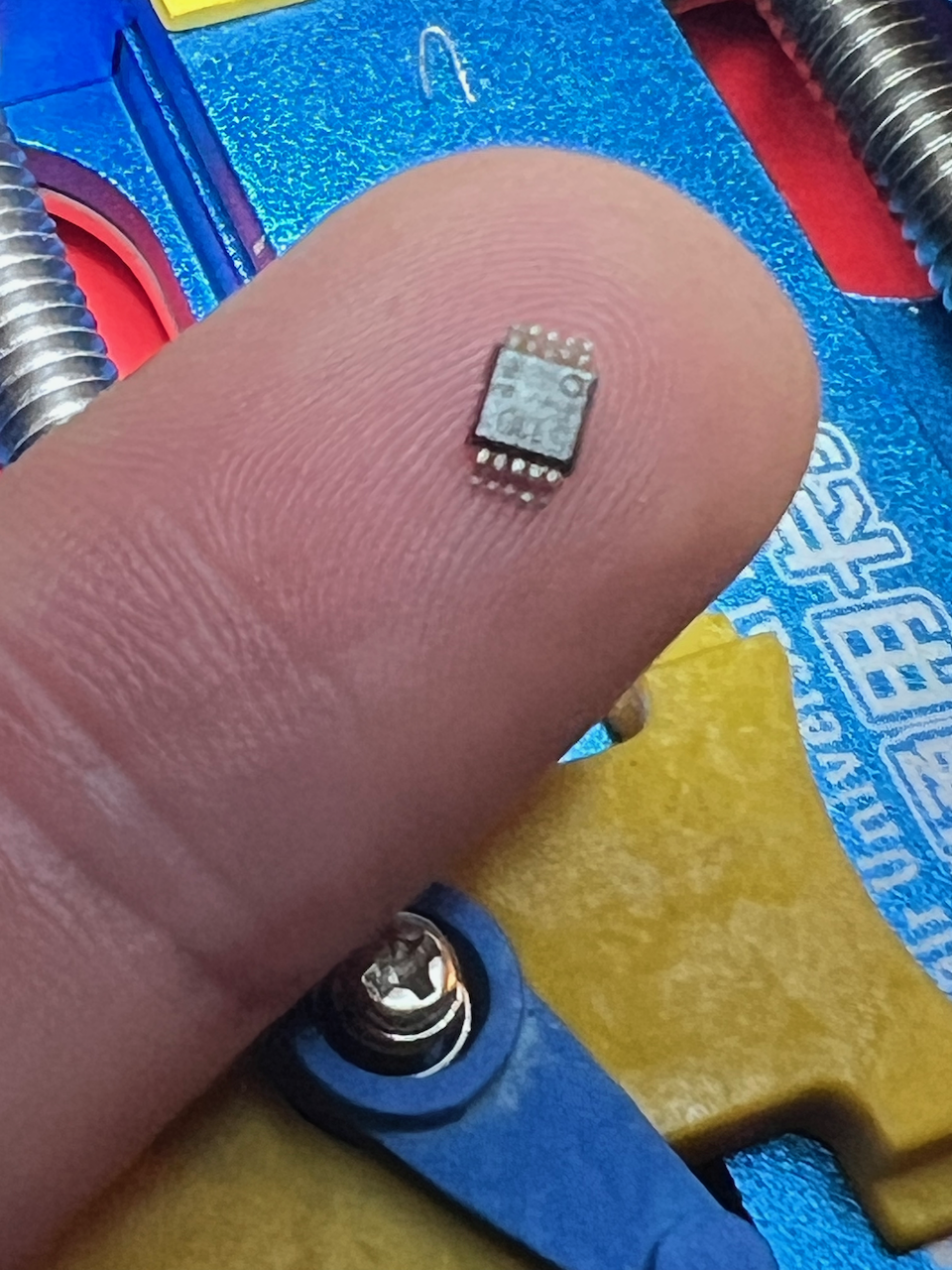

Firstly to dismantle and remove the PCB, reed switch, LED indicators and traced out a schematic

image alt text

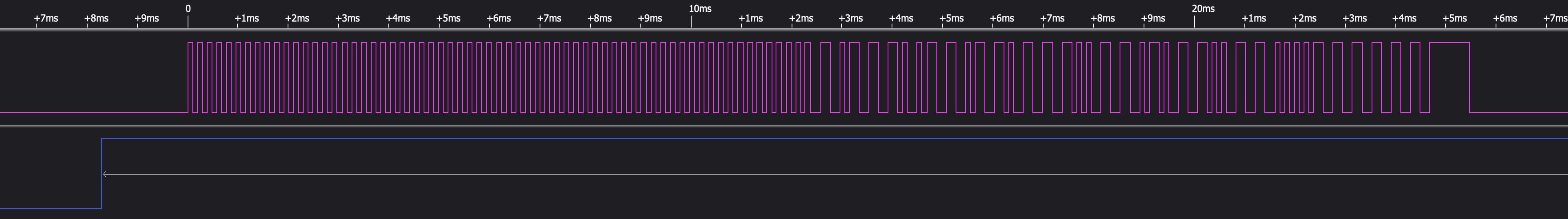

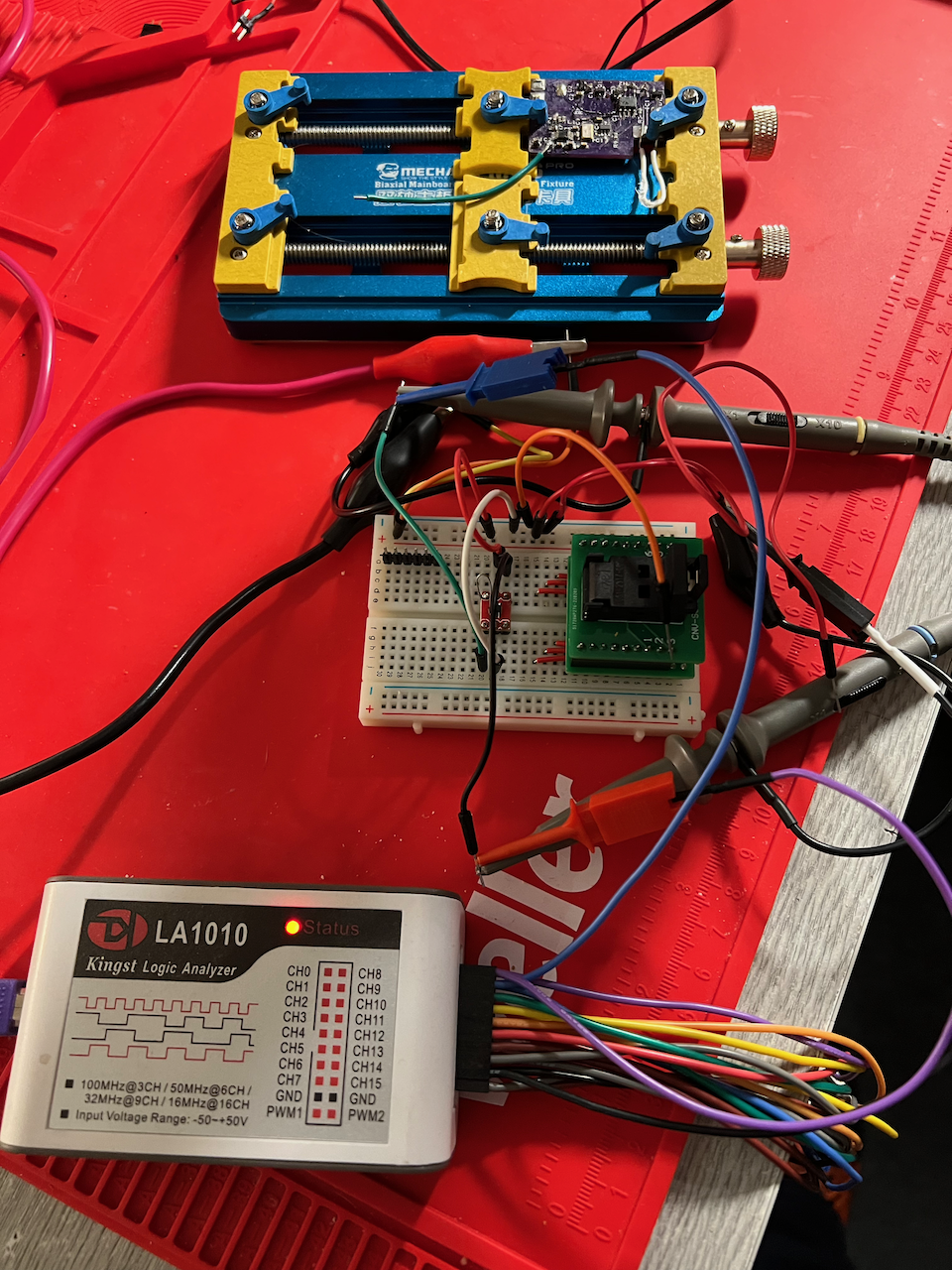

The following is the signal transmitted on the data lines on PIN 3

image alt text

image alt text

image alt text

image alt text

image alt text

image alt text

image alt text

image alt text

image alt text Kicad Schema Download
