Triumph Tiger 900 (23/24) - Tank Slider

3D Printing

OK - not really a tank slider for them low side track days, but more something to hide them skid marks when stalling on the switch backs in Welsh Alps or a little bit of protection when you forget to put the kick stand down fully. Tested on the 23/24 models, however should work on earlier ones.

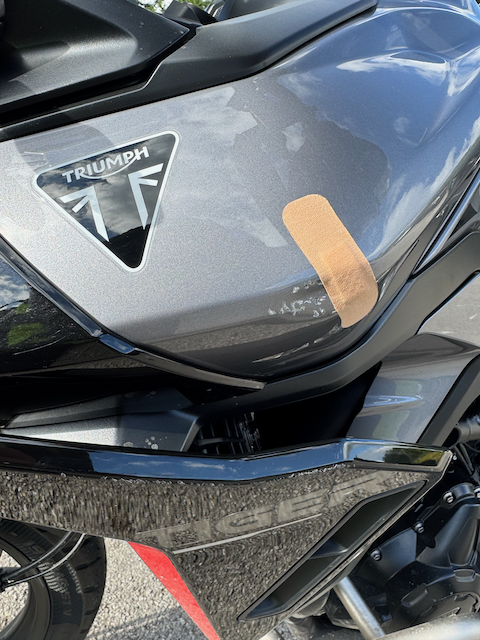

Before After
image alt text image alt text

Step 1 - Printing

  • Download the STL files here

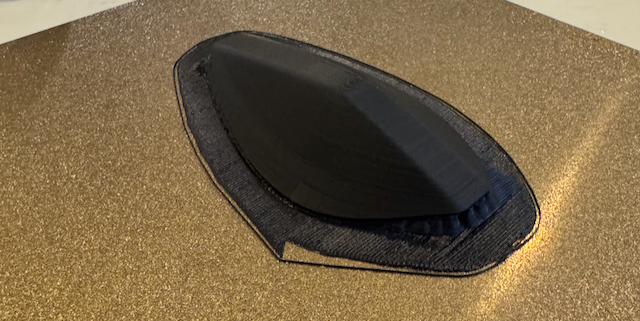

  • I printed in black PLA with 100% infill, as not structural and should not get that hot (lets see how that goes), also the model does not have any flat surfaces to ensure a fit to the tank properly, so when printing it will require support.

image alt text

Step 2 - Sanding/Painting

  • Roughly sand to remove any print ridges and sharp edges

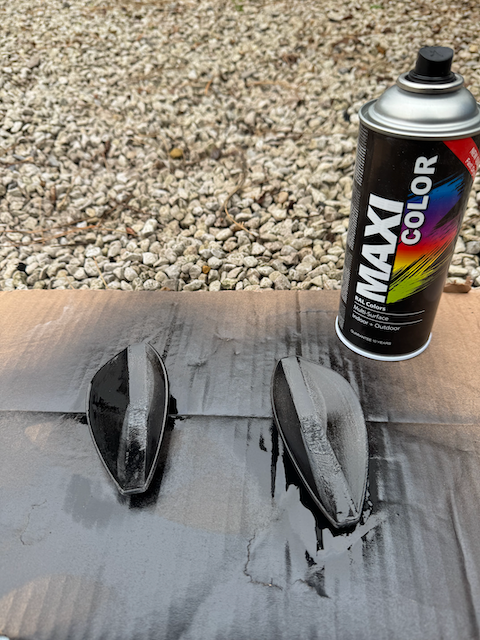

  • Next prime, and sand again to fill up any imperfections

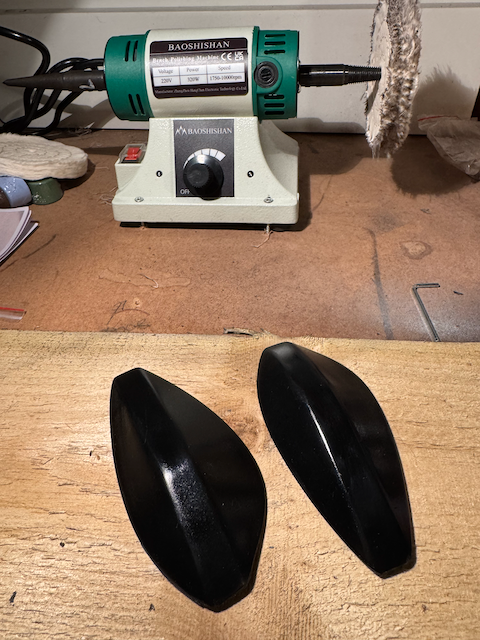

  • Then lastly paint and buff, keep repeating this until happy the with finish or bored.
Painting Buffing
image alt text image alt text

Step 3 - Installing

  • If the tank is damaged i.e showing metal, best to seal with some paint to stop any rusting

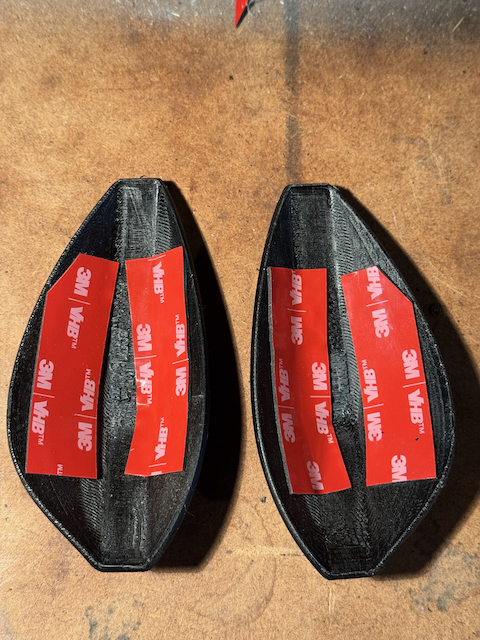

  • The slider can be attached with 3M VHB 1mm double-sided adhesive tape, by applying strips inside slider first on the top and bottom halves.
  • Perform a test fit, making sure you correct side and location, the peel off the other side of the double sided tape.
  • Before attaching, heat the slider up with a heat gun, this makes printed parts more plyable to shape to the tank profiles, and makes the VHB glue more affective.

image alt text

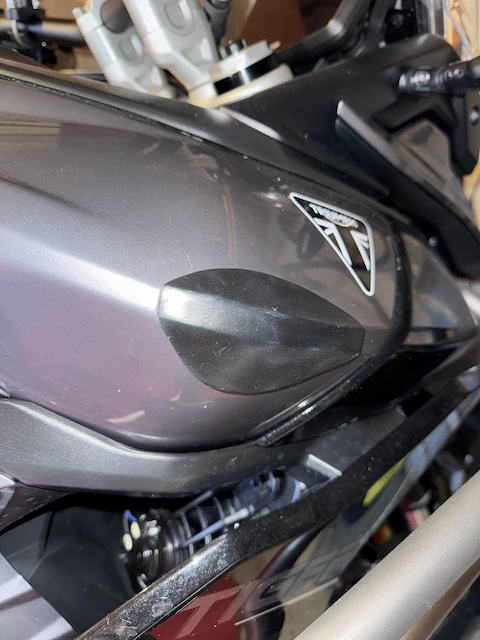

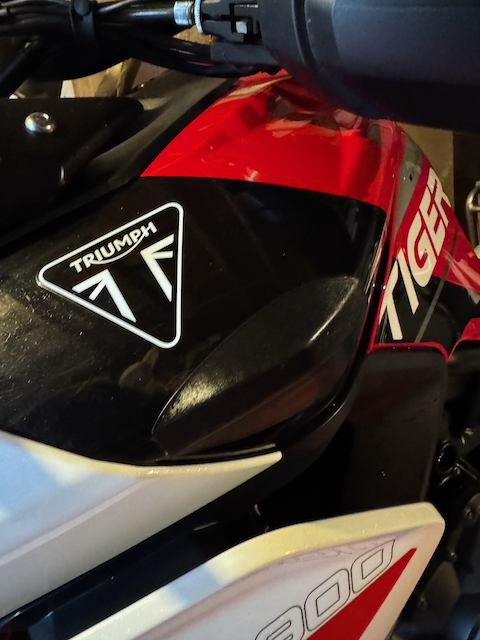

The Result

Tiger 900 (24) Tiger 900 (23)
image alt text image alt text
