Recapping Atari 2600 Light Sixer
The Atari 2600 Light 6 contains a number of electrolytic components that can potentially cause issues when they fail, the following instructions detail the parts to be exchanged and there positions.

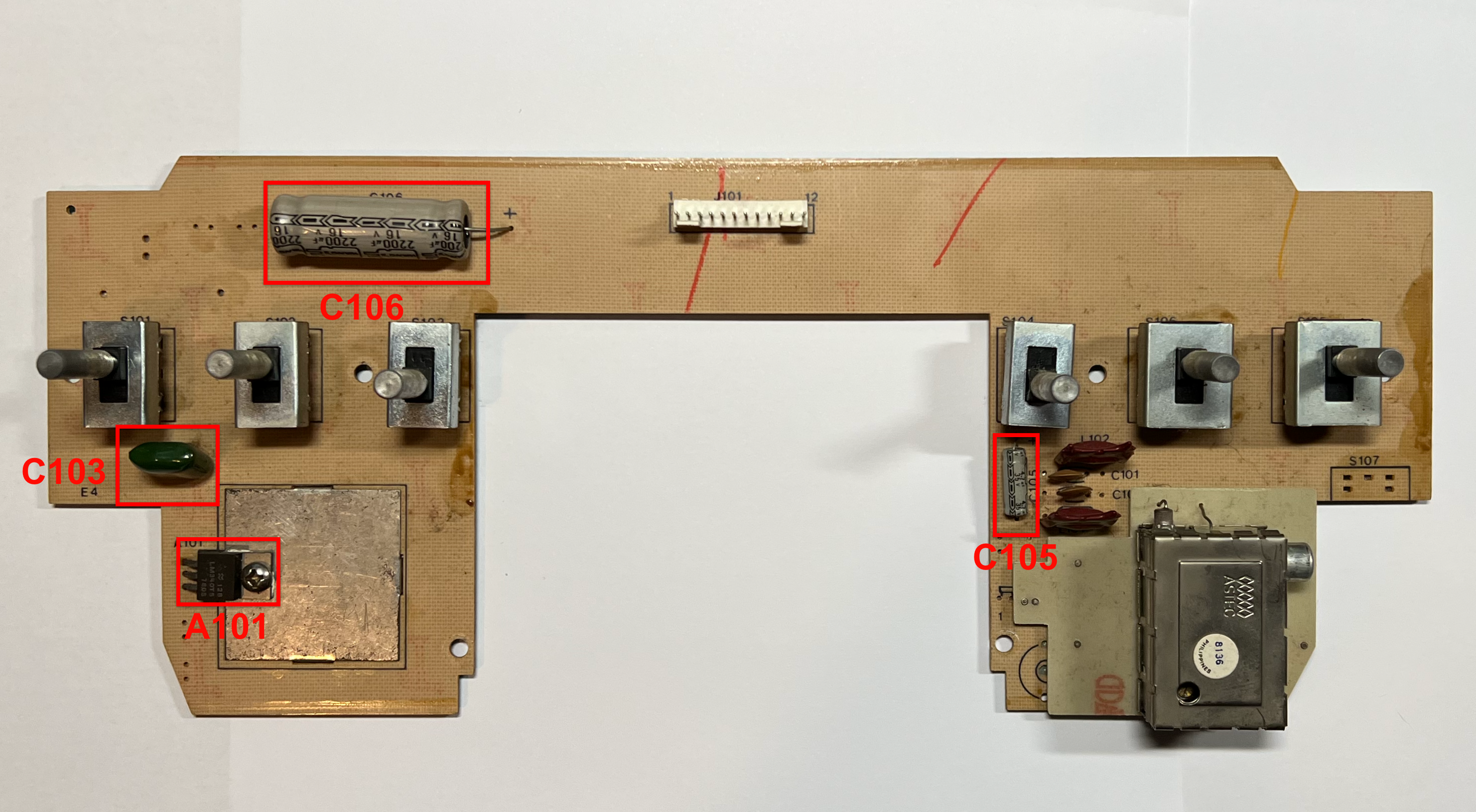

Switch Board
The switchboard requires two electrolytic capacitors, one mylar capacitor and one voltage regulator to be replaced.
| Location | Component |
|---|---|
| C103 | .22uf 100v mylar capacitor |
| C106 | 2200uf 16v electrolytic capacitor (Axial) |
| A101 | 7805 Voltage Regulator |
| C105 | 4.7uf 35v electrolytic capacitor (Axial) |

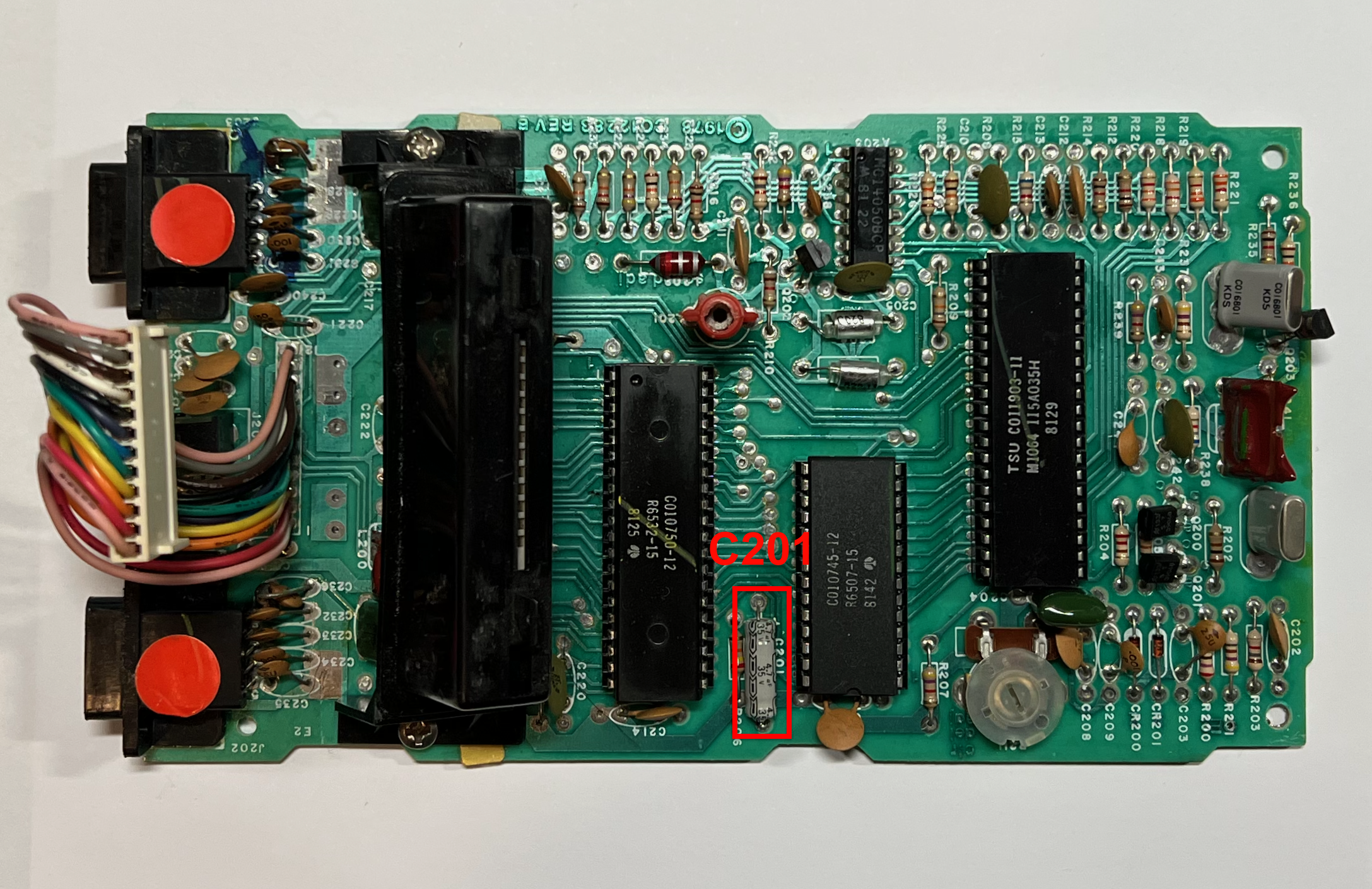

Main Board
The mainboard only contains one electrolytic capacitor at C201 that requires replacing.
| Location | Component |
|---|---|
| C201 | 4.7uf 35v electrolytic capacitor (Axial) |
